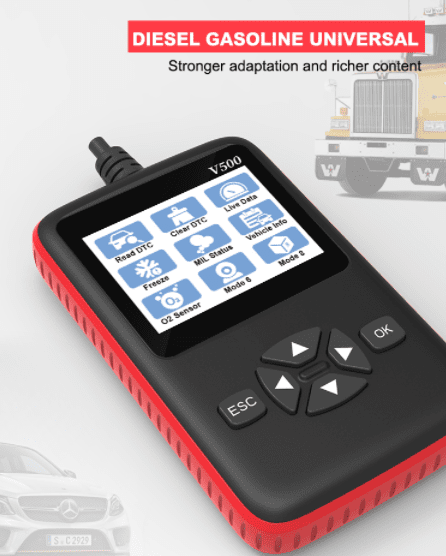

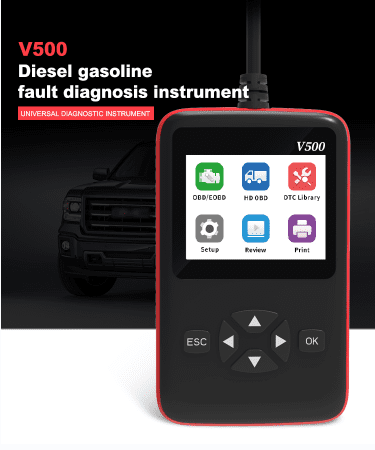

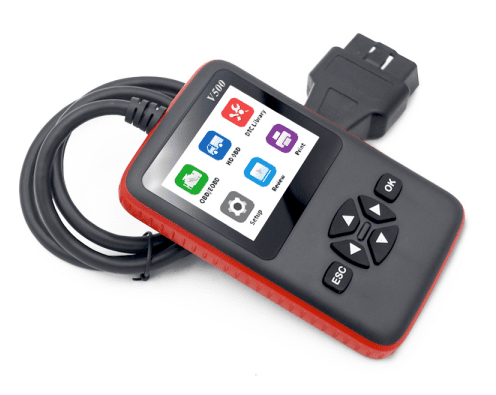

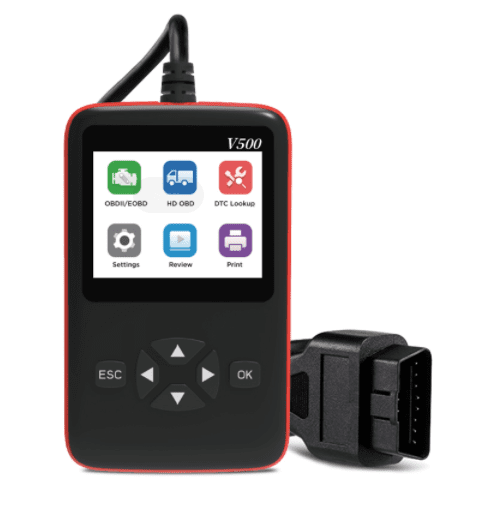

OBD Vehicle Diagnostic Scanner Diesel Vehicle OBD Scan Tool ECU Reader OBD + VAG OBD Key Programmer WiFi Elm327 OBD II Diagnostic System OBD Reader

Highlights:
1.Diesel vehicle fault detector, Tractor fault detector, Auto scan tool, Engine fault reading card, The I / M status detection,
2.Quick clearing of the fault code, elm327 Fault detector, The OBD 2 diagnostic code reader, Vehicle information reading code card, Car battery diagnostic instrument,
3.Diesel vehicle battery diagnostic instrument, Motorcycle / yacht battery diagnostic machine, Automotive diagnostic tool, Gas machine fault detector,
4.Support for 6 languages: German, English, Spanish, French, Dutch, and Chinese OBD Vehicle Diagnostic Scanner Diesel Vehicle OBD Scan Tool ECU Reader OBD + VAG OBD Key Programmer WiFi Elm327 OBD II Diagnostic System OBD Reader
5.Vehicle diagnostic tool WiFi Elm327 Fault code quickly clear I / M status detection OBD, adapter fault repair decoder OBD + VAG OBD key Programmer ECU Card Reader

Details:

SPU: PSV500
Trade name: Diesel vehicle fault detector; gasoline vehicle diagnosis instrument; obd 2 vehicle fault diagnosis instrument; engine diagnosis code card; vehicle diagnosis tool; vehicle information reading code card; diesel steam integrated diagnostic instrument factory direct selling (OBD connector)
technical parameter
Main control chip: LPC1765FBD100
Operating voltage: 9~16V
Operating current: 89 mA
Operating environment: -20 65℃
Storage temperature: -30 80℃
Overall dimension: 138.9 * 85 * 22mm
Packaging size: 175 * 258 * 62mm
Product weight: 500g
With packaging: 702g
Quantity quantity: 15 pcs

product description
1. Support the nine standard protocols for OBD II / EOBD.

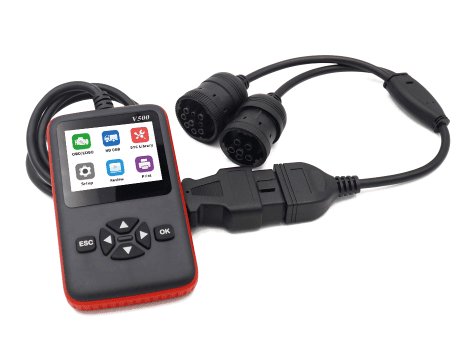

2. Support for common truck SAE J1939 / SAE J1708 protocols.
3. Support gasoline models to read; clear vehicle fault code; read data flow; freeze frame information; check MIL status; read vehicle information; oxygen sensor test; on-board monitoring (mode 6); evaporation system (mode 8) test.
4. Support truck models to read vehicle information; read / clear fault code information and data flow information.

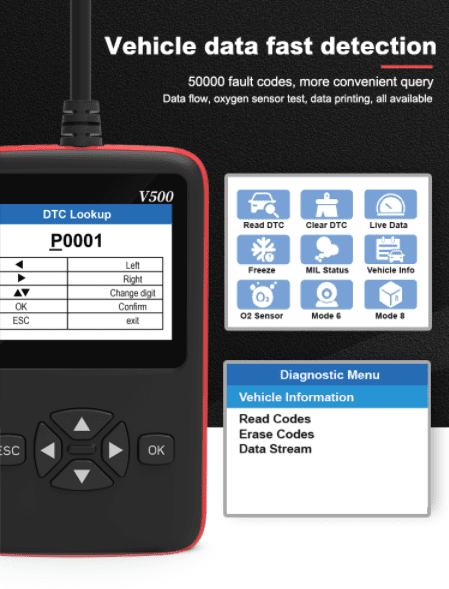

5. Support fault code information query; with built-in about 50; 000 fault code library information.
6. Support the data flow playback function; view / delete the fault code; the data flow; and freeze the frame information.
7. Support USB printing function; can print fault code; data flow; freeze frame information.
8. Support for 6 languages: English; German; Spanish; French; Italian; Russian; and Chinese
9. Color screen display 2.8
10. Communication mode; OBD interface
11.CE/FCC/ROHS/UKCA Certification

Support agreement
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init; 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init; 10.4 Kbaud)
5. ISO14230-4 KWP (fast init; 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID; 500 Kbaud)
7. ISO15765-4 CAN (29bit ID; 500 Kbaud)
8. ISO15765-4 CAN (11bit ID; 250 Kbaud)
9. ISO15765-4 CAN (29bit ID; 250 Kbaud)
10. SAE J1939
11. SAE J1708/ J1587

Vehicle diagnostic tool WiFi Elm327 Fault code quickly clear I / M status detection OBD; adapter fault repair decoder OBD + VAG OBD key Programmer ECU Card Reader Vehicle diagnostic scanner OBD 2 scanner; vehicle fault analyzer diesel vehicle diagnostic tool OBD; adapter OBD II Diagnostic System Battery voltage detection 12V General battery diagnosis cold start current detection multi-function battery diagnostic instrument
Vehicle Information Read Card multifunctional Battery Diagnostic Instrument Vehicle Maintenance OBD + VAG OBD2 Scanner Diesel Vehicle OBD Scan Tool OBD; Adapter Motorcycle Diagnosis Scanner Vehicle Fault Analyzer ECU Reader OBD II Diagnostic System Engine Fault Data Reading Card WiFi Elm327 OBD Key Programmer battery impedance detection battery life remaining charge test
OBD Vehicle Diagnostic Scanner Diesel Vehicle OBD Scan Tool ECU Reader OBD + VAG OBD Key Programmer WiFi Elm327 OBD II Diagnostic System OBD Reader Motorcycle Diagnostic Scanner Vehicle Fault Analyser OBD; Adapter OBD II Diagnostic System 12V Universal Battery Diagnostic Cold Start Current Detection Multifunction Battery Diagnostic Instrument

Support one product one generation order business
More commodity specifications and preferential policies; welcome the letter to consult the business
